How to remove and insert your RAM Modules

1. Turn off your computer: Before you start any work inside your computer, make sure it's powered off. Save any open files and close all programs, then shut down your computer properly.

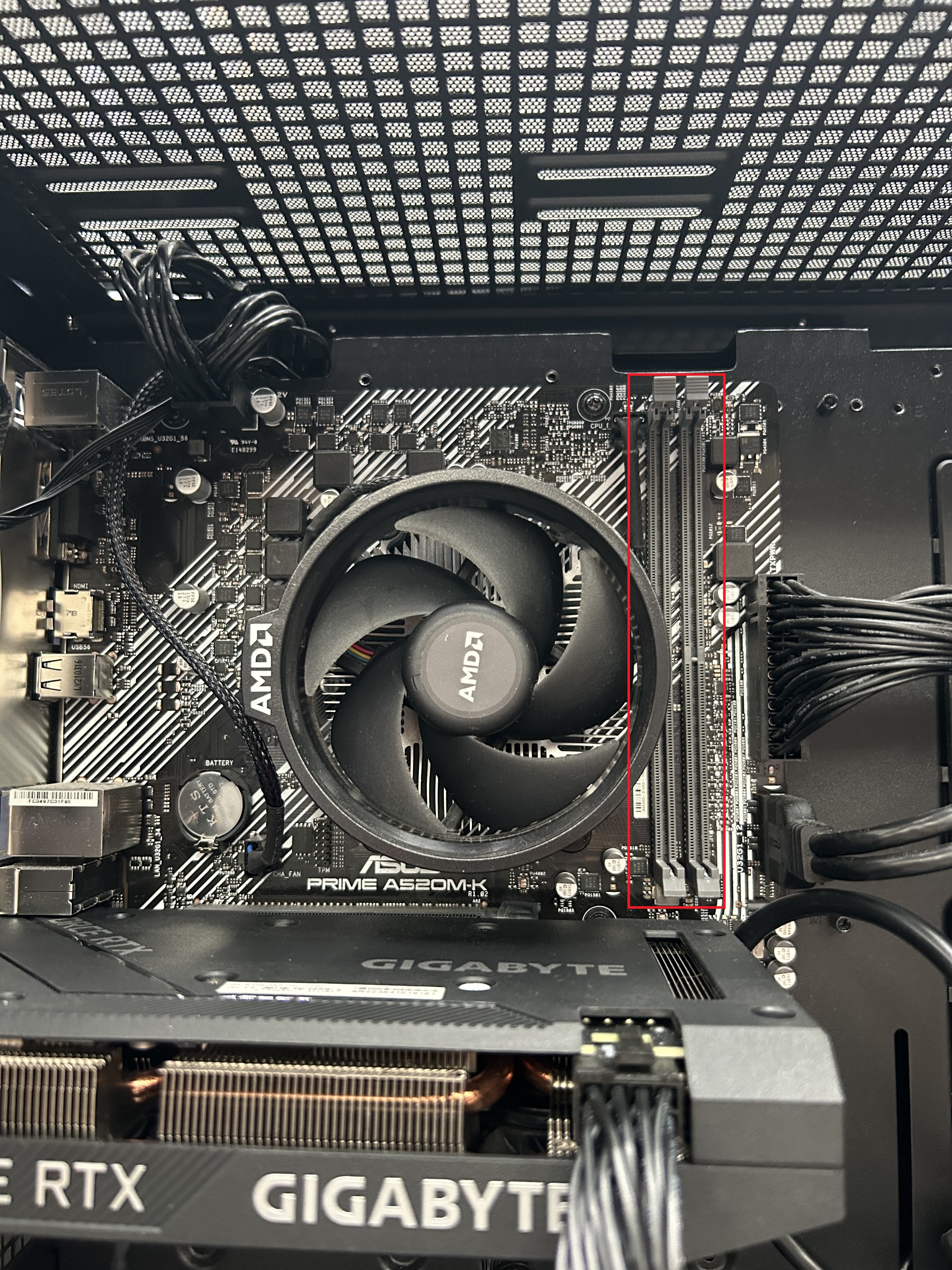

2. Find the memory slots: The RAM slots are usually located near the main processor (CPU). They are long, narrow openings on the motherboard, and they hold the RAM sticks.

Depending on your system, they may look slightly different but will be located in the same place.

3. Release the clip: On one side of the RAM stick, you'll notice a small plastic or metal clip. This clip keeps the RAM secure in its slot.

4. Gently push the clip: Using your fingers, carefully push the clip outward and away from the RAM stick. When you do this, the RAM stick will pop up slightly.

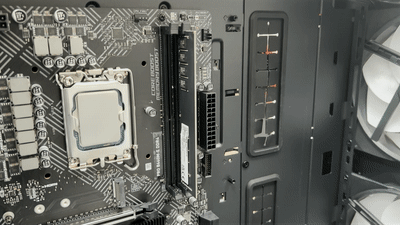

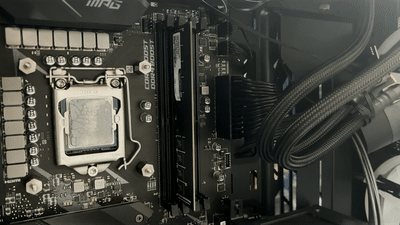

REMOVE DOUBLE CLIP.gif REMOVE SINGLE CLIP.gif

Ram slot with double clip (top and bottom) Ram slot with single clip

5. Gently push the clip: Using your fingers, carefully push the clip outward and away from the RAM stick. When you do this, the RAM stick will pop up slightly.

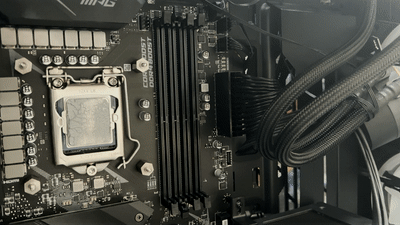

6. Remove the RAM stick: Once the clip is released, hold the RAM stick by its edges and gently pull it straight out of the slot. Be cautious not to use excessive force or bend any parts.

How to insert your RAM Modules

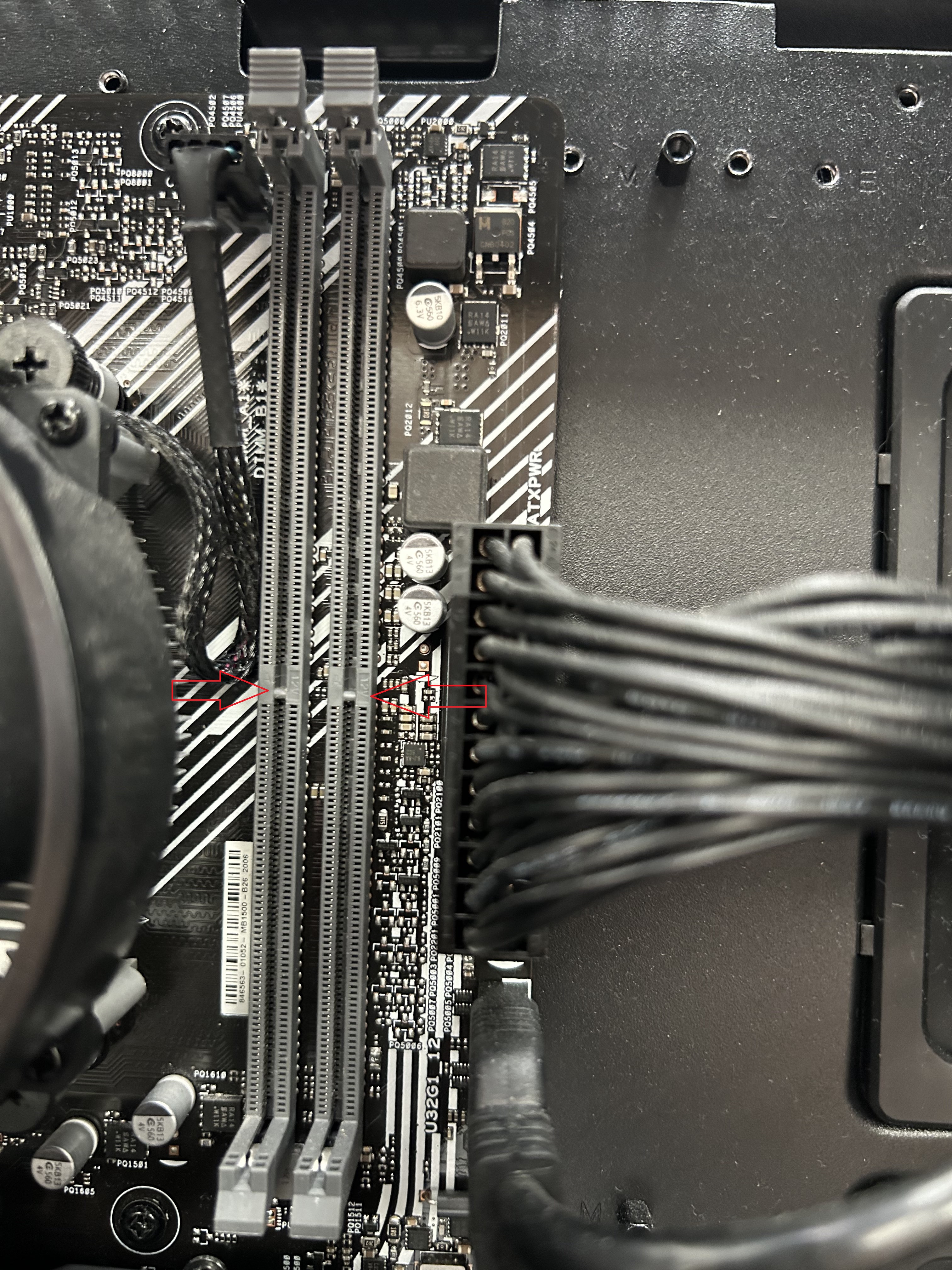

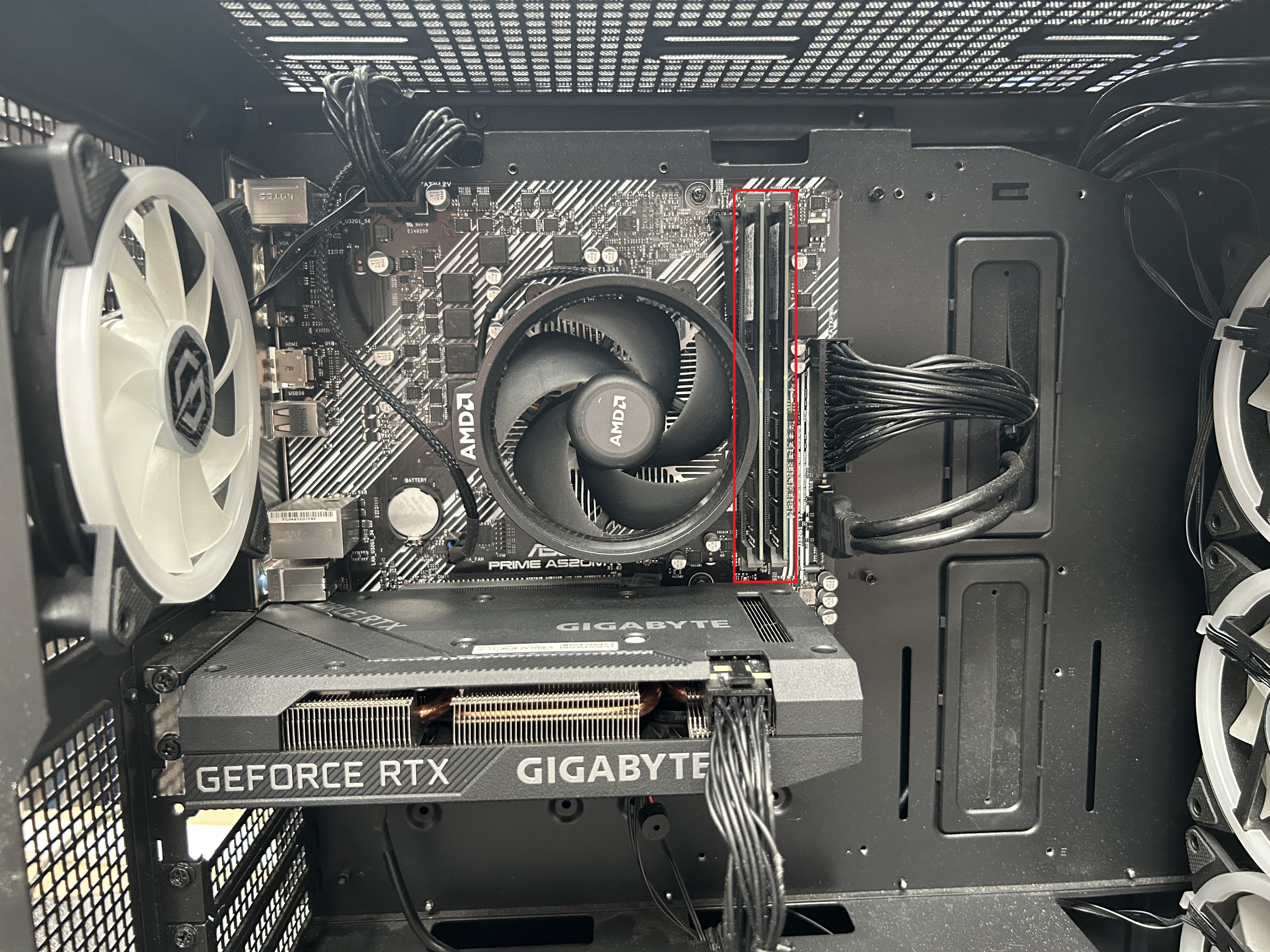

1. Locate the memory slots as you did in the previous part. They will look slightly different as they now don't have any RAM modules installed.

Depending on your system, they may look slightly different but will be located in the same place.

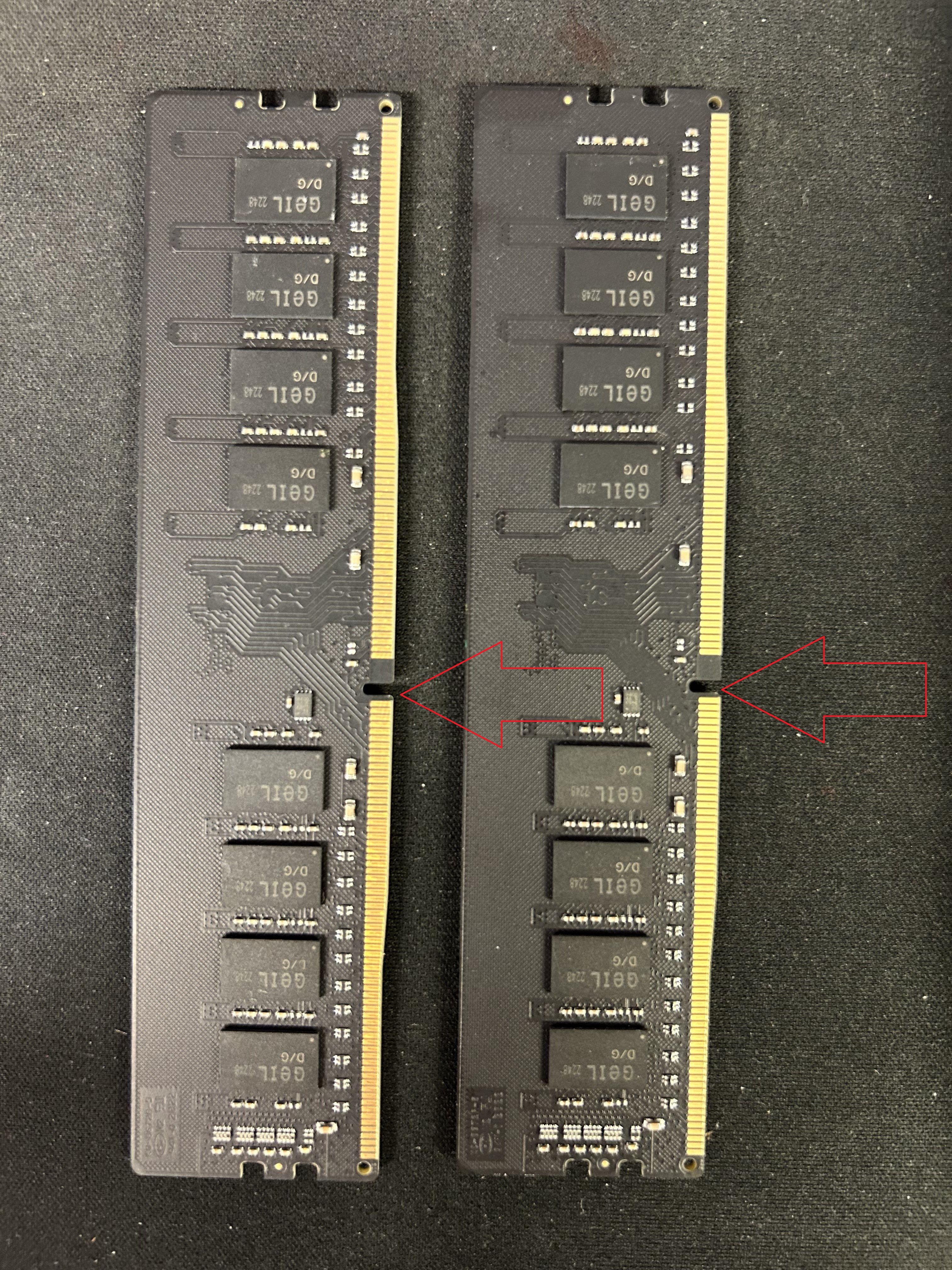

2. To align the modules with the slots on the motherboard, ensure you have located the notch on the modules and lined it up with the notch on the motherboard.
